OD 25-300mm Resistance Seam Welding Equipment

Xi'an Rui Lian Electromechanical Technology Co., Ltd.
Contact Now

OD 25-300mm Resistance Seam Welding Equipment

Brand Name : RUILIAN

Model Number : RFA-J25

Place of Origin : Hanzhong Shanxi China

MOQ : 1 devices

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1+ devices+a month

Delivery Time : 5-8 work days

Packaging Details : Packing in wooden cases

Welding diameter : Ø25~Ø300mm

Device name : Air duct arc seam welding machine of Resistance arc welding Seam Welding Equipment

Weld thickness : Stainless steel sheet:0.2~0.5mm/Low carbon sheet steel:0.2~0.5mm/Galvanized sheet steel:0.2~0.5mm

Welding speed : 1~3m/min

Welding copper wire diameter : Ø1.38 mm

Cooling water : 0.4Mpa 8.5L/min

compressed air : 0.8Mpa 600L/min ≤25°C

Welding power : 30KVA

Contact Now

Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding

Welding diameter Ø25~Ø300mm
Weld thickness Low carbon sheet steel:0.2~0.5mm
  Galvanized sheet steel:0.2~0.5mm
  Stainless steel sheet:0.2~0.5mm
Welding speed 1~3m/min
Overlap 6mm
Welding copper wire diameter Ø1.38 mm
Cooling water flow rate 0.4Mpa 8.5L/min

compressed air

0.8Mpa 600L/min ≤25°C
Welding power 30KVA
Net weight 1T

Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding

  • Air duct arc seam welding machine
  • Resistance arc welding
  • Arc welding
  • Air duct weiding
  • Sheet metal welding
  • Duct welder
  • Vanitation pipe

Product of Seam Welding Equipment Air duct arc seam welding machine of Resistance arc welding

Air duct arc seam welding machine of Resistance arc welding

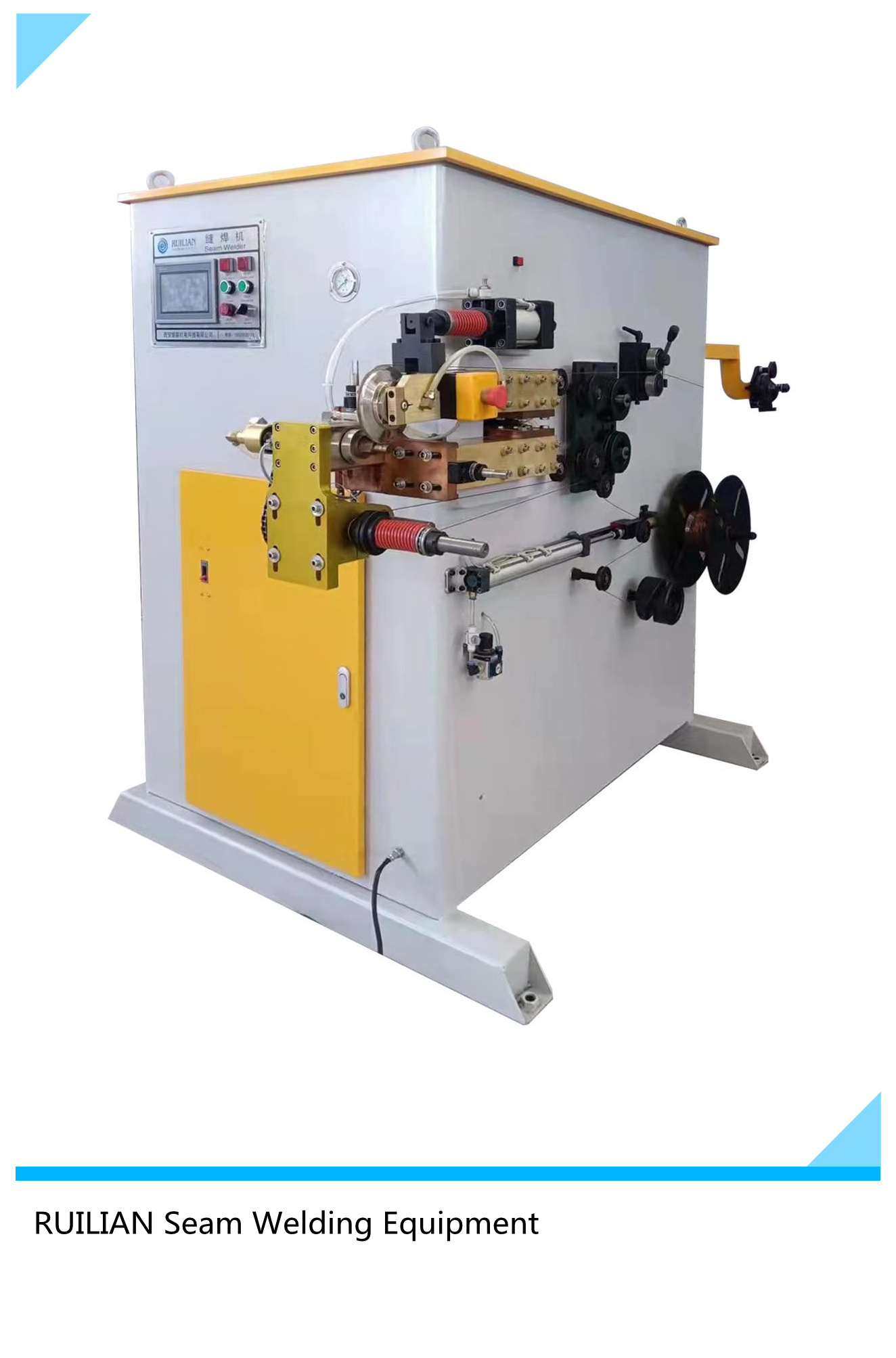

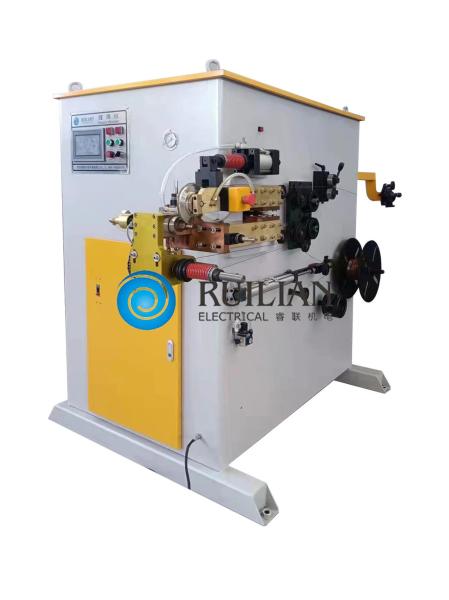

The RFA-J25 basic ring seam resistance welding machine is suitable for welding applications of circular air ducts and household appliances. RFA-J25 basic welding ring seam resistance machine is a special resistance welding machine with high practical value, which is suitable for application scenarios such as blunting the round tube. The air duct and appliance industry requires welding scenarios in which thin-arm round tubes are connected and resistance welding is a perfect solution.
